Lincoln Electric

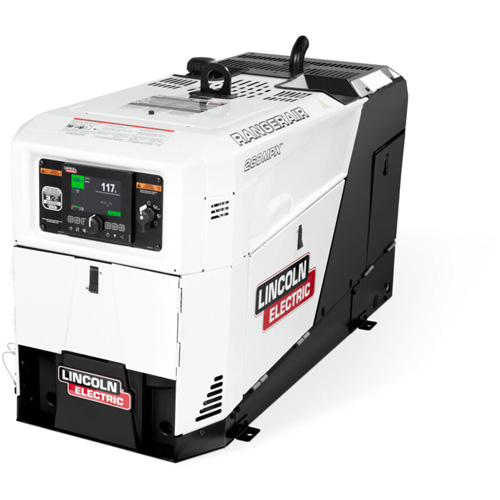

Ranger® Air 260MPX™ Multi-Function Engine Drive

Model: TTV793

Mfr. No.: K5238-1

  • Ranger® Air 260MPX Multi-Function Engine Drive Meunier Outillage Industriel

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$26,757.70 / Each

0 In Stock - Montreal Warehouse

Ships in 3-6 days

Shipping times are based on information available at the time of order and are subject to change.

Includes

  • (1) Ranger Air 260 MPX Engine Drive Welder, (1) Basic Wireless Remote for Engine Stop/Start Functionality

Dimensions (H X W X D)

26" x 20" x 48" (660 mm x 508 mm x 1219 mm)

Weight

565 lbs. (256 kg)

IEC Rating

231A/29.2V/100% @ 104°F (40 °C)

Max. Rating

260A / 26V / 100% @ 104°F (40°C)

Output Range By Mode

CC-Stick: 35 –260 Amps, Touch Start TIG: 25 – 260 Amps, CV-Wire: 16 – 27 Volts

Communication Technology

CrossLinc

Receptacle Types

NEMA 5-20R, NEMA 6-50R, NEMA 14-50R

Engine Horsepower

26.5 HP

  • Multi-function capabilities
  • Cost saving features
  • Digital user interface
  • Advanced technology
  • Compact design
