Lincoln Electric

POWER MIG® 215 MPi™ Multi-Process Welder TIG One-Pak®, 120 V/230 V, 1 Ph, 60 Hz

Model: TTV730

Mfr. No.: K4878-1

  • POWER MIG® 215 MPi Multi-Process Welder TIG One-Pak®, 120 V/230 V, 1 Ph, 60 Hz Meunier Outillage Industriel

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$6,540.75 / Each

0 In Stock - Montreal Warehouse

Ships in 11-14 days

Shipping times are based on information available at the time of order and are subject to change.

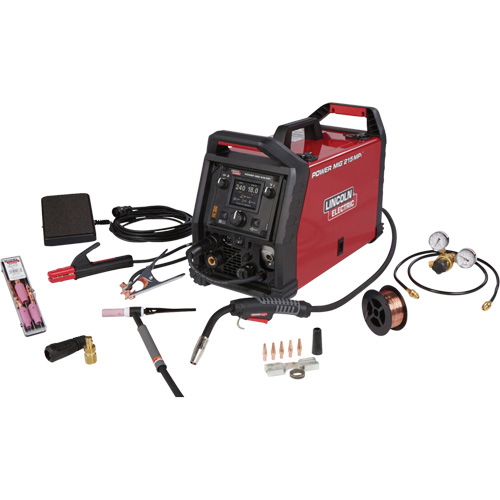

Includes

  • (1) POWER MIG 215 MPi Multi-Process Welder
  • (1) K4076-1 Magnum® PRO 175L Gun 10 ft. (3.0 m)
  • (1) K1782-1 PTA-17 Ultra-Flex TIG Torch 12.5 ft (3.8m)
  • (1) K1622-1 Twist Mate TIG Torch Adapter
  • (1) K870 Foot Amptrol
  • (1) KP508 PTA-17V TIG Torch Parts Kit
  • (1) 230V to 120V Power Cord Adapter
  • (1) Work Cable and Clamp
  • (1) Electrode Holder and Lead Assembly
  • (1) Adjustable Gas Regulator and Hose
  • (1) Gasless Nozzle
  • (1) Gun Cable Liner (pre-installed"gun)
  • (1) Spindle Adapter
  • (1) ED030631 Sample 2 lb (0.91 kg) Spool of SuperArc® L-56® MIG Wire
  • (2) Contact Tips 0.025"(0.6 mm)
  • (2) Contact TIps 0.035"(0.9 mm)
  • (1) Drive Rolls 0.025-0.030"(0.6-0.8 mm) and 0.035"(0.9 mm) (Installed)
  • (1) Knurled Drive Roll 0.030-0.045"(0.8-1.1 mm)
  • (1) Wire Guide 0.045"(1.1 mm) and 0.025-0.035"(0.6-0.9 mm)(Installed)

Voltage Input Power

120 V/230 V

Phase Input Power

1 Ph

Hertz Input Power

60 Hz

Dimensions

11.8"x 6.25"x 16 in

Net Weight

20 lbs (9.1 kg)

Machines Processes

Stick (SMAW), TIG (GTAW)

IEC Rating

IP21S

Open Circuit Voltage

Average OCV - 65V Peak OCV - 110V VRD OCV (Peak) - 14V

Output Range

SMAW 120V: 20-85A 230V: 20-180A GTAW 120V: 10-110A 230V: 00-200A MAX OCV 110V

Polarity

DC

Rated Output

SMAW 120V: 85A/23.2V/40% 230V: 180A/26.4V/25% GTAW 120V: 110A/14.6V/40% 230V: 200A/16.4V/25%

  • Portable welder for MIG, stick, TIG, and flux-cored welding
  • Dual Input Voltage - 120V and 230V inputs so you can plug into any common power supply
  • Ergonomic Case - Sleek and robust case design with multiple lift points for ease of mobility around the shop
  • Built in TIG Solenoid and Foot Pedal Adapter - The POWER MIG 215 MPi welder is designed to accept a TIG torch, no install required
  • Robust and Reliable Wire Drive - Ensures proper and consistent feeding for optimal welding experience
  • Ready.Set.Weld® Technology - Simplifies setup by recommending optimal welding parameters for each welding procedure
  • ArcFX® Technology - Provides instant visual feedback on how settings affect the weld outcome
  • Memory Capability - Easily recall saved settings to get welding faster
  • Lightweight and Portable - Only 48 lbs.
